A fake card for the P3: the camera in aifoundry2's open PCIe slot

AI Foundry · thermal camera. Written Sun 18 Oct 2026 (week 42), 04:20–05:00 PDT, on the Intel, from your Sat 17 Oct 12:30 note: "come up with a plan, of what I could do", and fix the camera "to a fake card so that it's more, it's affixed in a better way". Built from your Fri 16 Oct photos at the lab (18:10–18:11), Friday thermal measurements (9 Oct), the focus simulator, the camera's spec from your reverse-engineering, the hub's next steps and current product listings. Part of the thermal camera hub, whose log now lists this idea.

Yes, and the slot is in the right place. aifoundry2's empty PCIEX16 is three slot positions, 61 mm, from the card, about the distance the focus simulator picked for the camera (60 mm). A printed "fake card" screwed into that slot can hold the P3 in a cradle that slides through a window, so the lens sits anywhere from 40 to 62 mm from the card's back: set it at 60. It stays rigid and square to the card by construction. It comes out and goes back to the same place, and it never touches the card or the connector. The parts cost about $20–25 plus the print.

Slots apart Lens to the card's back Focus holds within Parts
3 (slot 2 to slot 5, 61 mm) 60 mm (slides 40–62) ±2.2 mm of where you focus ~$20–25 + the print

What Friday's photos show

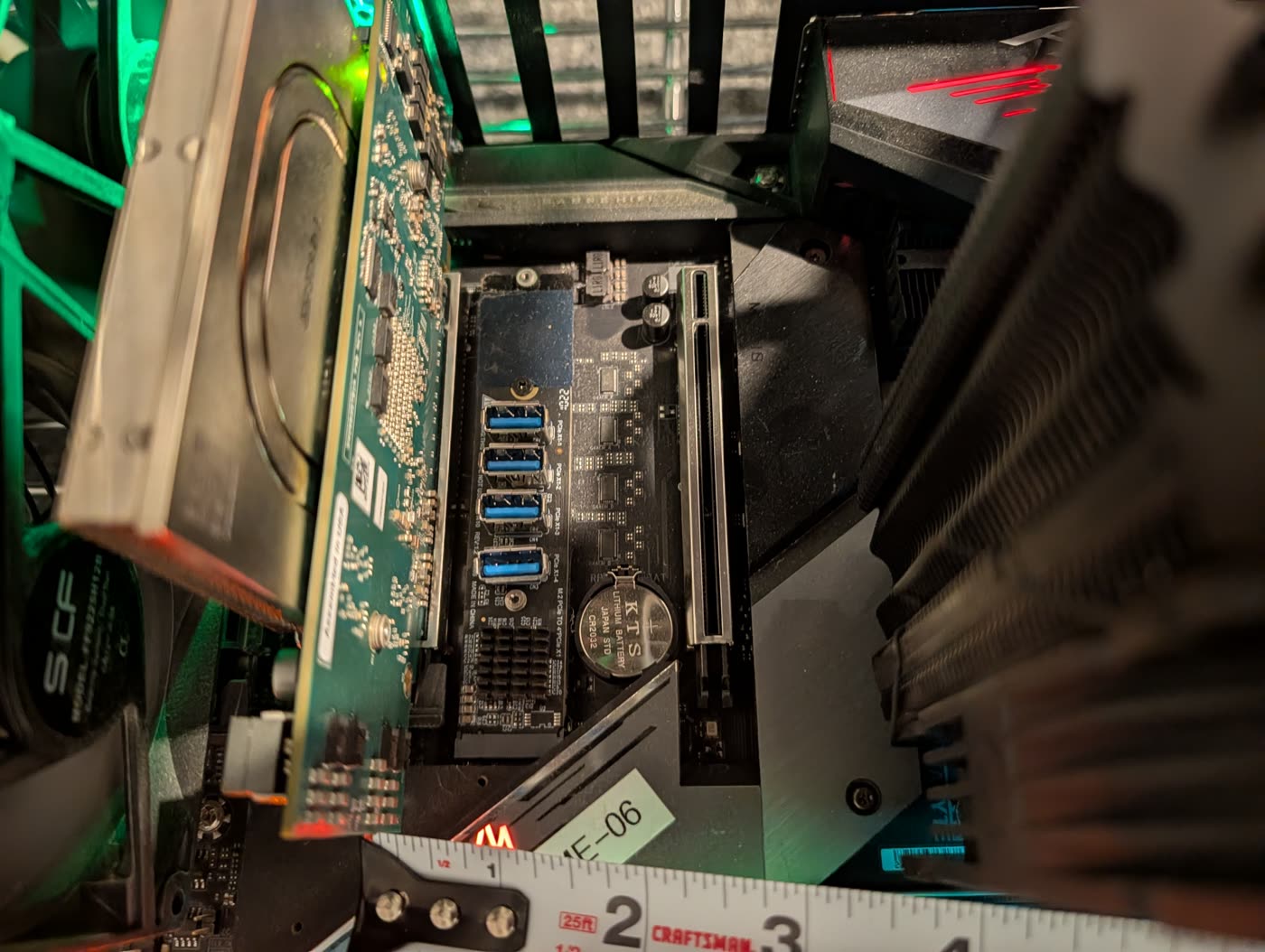

Looking down into aifoundry2: the ET card on the left with its parts-covered back facing right, an empty steel-armoured PCIe x16 slot in the middle, the CPU cooler's fins on the right, an M.2 adapter board and a coin battery between them, a measuring blade along the bottom.
Fri 16 Oct, 18:11, the slot you photographed. The card is on the left; its back, covered in small parts, faces right. The empty, steel-armoured PCIEX16 is in the middle and the CPU cooler's fins are on the right. Between the card and the slot, an M.2-to-four-PCIe-x1 adapter and the board's coin battery lie flat.

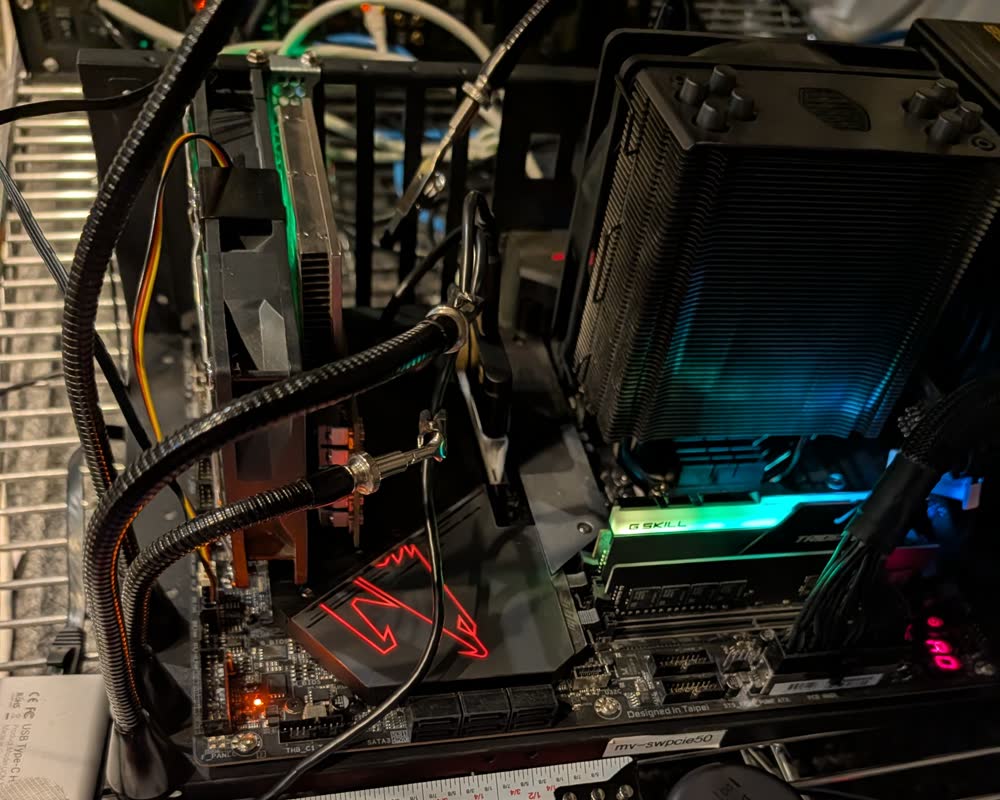

aifoundry2 from the front: two black gooseneck arms reach into the gap between the card and the Cooler Master tower; the frame's label reads mv-swpcie50; a measuring blade lies across the front.
18:10, today's mount. Two gooseneck arms of the helping hands hold the P3 in the gap. The frame's label, mv-swpcie50, is aifoundry2's.

Why the open slot works

Expansion slots are 20.32 mm apart (the ATX standard), so slot 2's centreline is 61 mm from the card's centreline. Take off half the board's thickness and it's 60.2 mm from the card's back. Where the camera sits on the fake card decides the rest:

Where the P3 sits Lens to the back Sees Focus holds Air to the fins
Flat on the card's side 40 mm 26 × 19 mm, part of the die ±1.0 mm 31 mm
Centred in the window 52 mm 34 × 25 mm, the die ±1.6 mm 20 mm
8 mm toward the cooler 60 mm 40 × 30 mm, the die and its capacitors ±2.2 mm 12 mm
Flush on the cooler's side 62 mm 41 × 31 mm ±2.3 mm 10 mm

Across the range the pixels cover 0.10 to 0.16 mm of board.

rear wall · slot positions 20.32 mm apart12345heatsink and fanscard, slot 5back faces the coolerCPU coolerfins at 89 mmfake card, slot 2with a windowP3sees 40 × 30 mm60 mm: lens to the card's back12 mm3 slots = 61 mmthe cradleslides 40–62 mm
From above, to scale, with the rear wall at the top. The fake card stands in slot 2 and holds the P3 in its window, lens 60 mm from the card's back and 12 mm short of the cooler's fins. The teal wedge is what the camera sees across the card. The brown patch is the chip, on the card's other face. Solid parts are measured or standard; the heatsink outline is approximate.

Three ways to build it

1. Printed fake card 2. A slot fan bracket 3. A slot cover plus VHB
What an ASA plate with a window and a sliding cradle, on a steel slot cover a PCI-slot fan bracket in slot 2, the P3 on a plate where a fan goes FR4 or aluminium on a slot cover, the P3 taped flat to it
Lens distance 40–62 mm, set at 60 set by the bracket (measure it) 40 mm only
How well it holds rigid, square, returns to the same place rigid VHB creeps slowly in warm air
Parts ~$20–25 + the print ~$8–15 bracket + screws + the print ~$25–30
Verdict build this a stopgap close-ups only: the die doesn't fit at 40 mm

Rules for any of them:

What to build

Part Price Where
Steel full-profile slot covers, 10-pack (StarTech PLATEBLANK) $12.29 list SHI
M3 nylon screws, nuts and standoffs, ~180 pieces $7.89–9.99 Walmart, WREKD
The ASA print a lab printer, or a service's quote (JLC3DP has no minimum order) JLC3DP
3M VHB 5952, ¾ in × 15 ft (baffle, or option 3) $14.99 Walmart, read Sun 18 Oct
Option 2: Akasa AK-MX304-08BK slot fan bracket (80/92 mm) €7.90; $14.68 when in stock Caseking, Memory C

Then, in order:

  1. Ask Roman Shaposhnik or Nate Padgett for slot 2 and a time to power aifoundry2 down.
  2. Spend ten minutes with the measure on the next visit (the list below).
  3. Model it from the MakerWorld cover and print it in ASA.
  4. Power down, screw the fake card into slot 2, set the cradle at 60 mm and route the cable out.
  5. Boot and let it run warm for 20 minutes. Focus on the capacitors' cold dots with the live focus meter (Focusing the P3), lock the ring and add a witness mark.
  6. Tap the frame: if the picture jumps, tighten. Watch the camera's own temperature through one loaded run.

Next visit: what to measure

  1. Slot 2's centreline to the card's back: expect about 60 mm.
  2. Slot 2's centreline to the nearest cooler fin: expect about 29 mm (89 less 60).
  3. The chip's centre on the card's back: how far in from the rear wall and how high above the motherboard (estimated at 86 and 42 mm).
  4. Slot position 2 in the rear wall: is it open, and does its screw take a 6-32 or an M3?
  5. The M.2 adapter: its height, and whether risers are about to go into it.
  6. The P3's lens: where it sits on the camera's face, with calipers, so the window can be centred on it.
Sources, and how this page was built
  • Your photos, Fri 16 Oct 18:10:53 and 18:11:08 (Dropbox/photos), read at full resolution. The copies here have their metadata removed, and the first is cropped above the phone. The Fri 16 Oct day recap has you putting the camera in front of aifoundry2.
  • Friday thermal measurements (9 Oct): the card in position 5 and the PCIEX16 in position 2 (Gigabyte Z590 AORUS MASTER manual), the 89 mm to the fins, the chip's centre at about 86 mm in and 42 mm up, and the bracket-in-slot-2 geometry. The ATX 2.2 spec gives the slot pitch, 0.800 in.
  • The focus simulator (14 Oct): its thin-lens model gives the fields above (3.072 × 2.304 mm sensor behind a 4.3 mm lens), and focus within ±2.2 mm at 60 mm, growing with the square of the distance.
  • The camera: 59 × 27 × 17.2 mm, 26.3 g, focus from 8 mm to infinity (THERMAL_MASTER_P3.md in the thermal-android repo, from the reverse-engineered P3). The −10 to 55 °C rating is from the P3 manual, as cited on the hub.
  • The hub's next steps: the cradle, ASA over PETG, the cable advice, and the 70–170 mK cost of a half-pixel wobble.
  • Prices, read Sun 18 Oct 2026: the listings linked in the parts table. US stock for the Akasa bracket is uncertain. TME lists it at $6.19 net for business buyers.
  • The geometry script sits in this session's scratchpad: geom.py for the table, svg.py for the drawing.

Total life satisfaction: a camera that stays put turns Friday's live stream into measurements you can repeat, which is the step from a demo toward the thermal model in your Project doc. It also adds a print and a lab visit to an already full week, so it's worth doing only when the measuring is what you want next.
